BLE Beacon VDB1609

The personnel positioning tag iBeacon VDB1609 can be used as an indoor positioning tag for positioning through a BLE Bluetooth positioning gateway or other BLE positioning base stations.
Number of visits：16411

Specification Download

1. Product Description

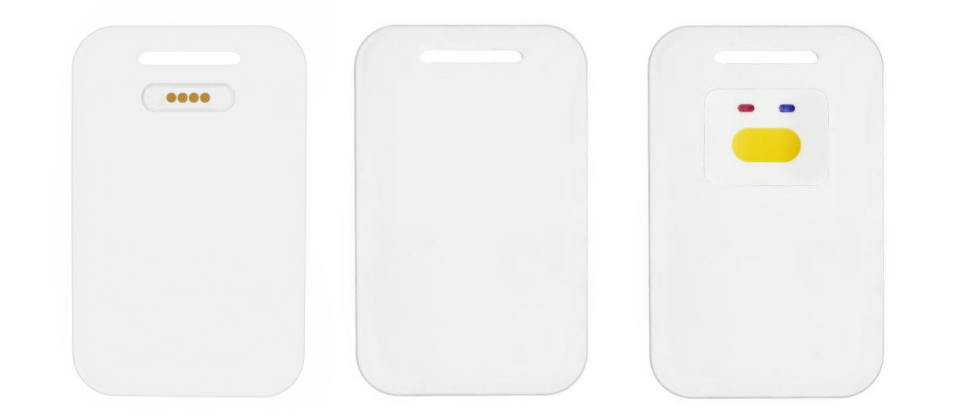

VDB1609 is a BLE(Bluetooth Low Energy) 4.2 card. It can broadcast its owner’s personal identification information like name and UUID. And it can be used as indoor positioning card, which can be located by BLE gateway or other BLE locating base-station.

VDB1609 has a rechargeable 600mAh Li-Battery. It can be charged by a magnetic USB connector line. Please follow the magnetic draw direction which will combine the card and connector tightly. Do not let the battery run out for too long, which may damage the battery, and make it difficult to recharge.

VDB1609 has a power key which can also be used as SOS key. Short press can activate the SOS signal, and long press (>3S) can power on or power off the card.VDB1609 has two LED. The red one will be on when the battery is charging. The blue one will be on when pressing the button.

2. Basic Parametes

BLE4.2 TX power	+4dBm Max
BLE4.2 RX sensitivity	-96dBm
Frequency	2400~2483.5MHz
Battery Life	>3 month
Power consumption	Idle 5uA, TX 8mA@0dBm, RX 11mA
LED	Charging LED, state LED
Key	Short press: SOS Long press: Turn on/off
Broadcasting distance	100 meters
Battery capacity	600mAh
Charging cable	Magnetic connect cable
Charging time	4 hours
Program updating	Support USB JLINK Support OTA(Over The Air, by bluetooth updating)
Operating Temp.	-20~60℃
IP grade	IP67（water resistance）
Dimention	85.3353.927.26mm
Accessory	Magnetic connect cable, Hanging belt
